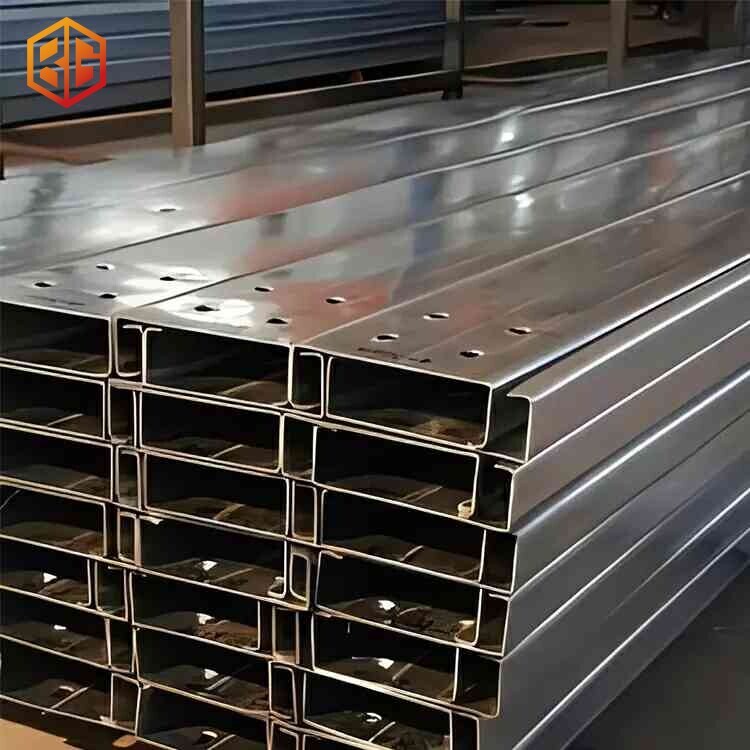

Hot dipped galvanized c purlins production process

C-purlin Processing Flow:

All c section purlin brackets are automatically machined by a profile forming machine, and the C profile steel forming process can be automatically completed according to the given size.

1~2.5mm thickness for pre-galvanizing & ZM310 materials

Feeding — Flattening — Forming — Sizing — Adjusting — Measurement — Punching — Cutting off — Pre-galvanizing C profile

3~5mm thickness for HDG materials

Feeding — Flattening — Forming — Sizing — Adjusting — Measurement — Cutting off — Punching — black C profile

Variety Name:

Hot galvanized c purlins, hot galvanizing cable bridge C-steel, solar panel flat roof mounting brackets c channel steel, glass curtain wall C steel, wiring channel C steel, reinforced C-steel, caliper C-steel, single-side C-steel, hand fork lifter C-steel, expressway stand column C-steel, solar energy support C-steel, mould-hanger C-steel precision C-steel used for equipment etc.

Main application of C-steel:

C channel profile is widely used for purline and wall beam of structural steel construction, and is applicable for combining into light roof truss and bracket.

In addition, it is also used as columns, bridges and arms in machinery light industry manufacture.C-purlin Processing Flow:

All c section purlin brackets are automatically machined by a profile forming machine, and the C profile steel forming process can be automatically completed according to the given size.

1~2.5mm thickness for pre-galvanizing & ZM310 materials

Feeding — Flattening — Forming — Sizing — Adjusting — Measurement — Punching — Cutting off — Pre-galvanizing C profile

3~5mm thickness for HDG materials

Feeding — Flattening — Forming — Sizing — Adjusting — Measurement — Cutting off — Punching — black C profile

Variety Name:

Hot galvanized c purlins, hot galvanizing cable bridge C-steel, solar panel flat roof mounting brackets c channel steel, glass curtain wall C steel, wiring channel C steel, reinforced C-steel, cali
