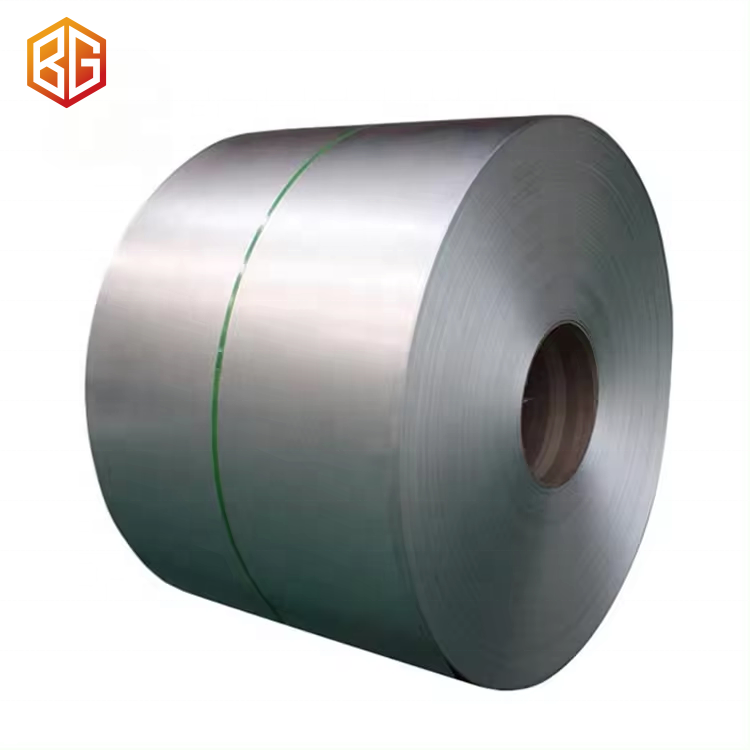

Oriented Silicon Steel CRGO

Electrical steel, usually referring to cold rolled electrical steel, can be divided intotwo major categories including grain oriented electrical steel and non-orientedelectrical steel. Grain oriented electrical steel, with its easy magnetizationdirection parallel to the rolling direction, has excellent magnetic properties in thisdirection including low core loss, high permeability and low magnetostriction andis widely used in the transformer industry. Further it can obtain lower core lossby domain refinement treatment. Meanwhile non-oriented electrical steel.featured by random distribution of grain orientation and magnetic isotropy, iswidely applicable to the motor industry.

WhatsApp : +86 15620686479

Email : bg06@bg-steel.com

◉ Product Description

◉ Product Show

◉ Application

◉ Package

◉ Product Description

Standard Magnetic Properties

Type	Grade	Nominalthickness	TheoreticalDensity	P1.7150Max.Core loss	BsoMin.Induction	Min.Laminationfactor
Type	Grade	mm	kg/dm³	W/kg	T	%
Convertional	23Q110	0.23	7.65	1.10	1.82	94.5
	23Q120	0.23	7.65	1.20	1.82	95.0
	27Q120	0.27	7.65	1.20	1.82	95.5
	27Q130	0.27	7.65	1.30	1.82	96.0
	30Q120	0.30	7.65	1.20	1.82	96.0
	30Q130	0.30	7.65	1.30	1.82	96.0
	35Q135	0.35	7.65	1.35	1.82	96.5
	35Q145	0.35	7.65	1.45	1.82	96.5
	35Q155	0.35	7.65	1.55	1.82	96.5
High Induction	18QG085	0.18	7.65	0.85	1.86	92.0
	18QG095	0.18	7.65	0.95	1.86	92.0
	20QG085	0.20	7.65	0.85	1.86	93.0
	20QG095	0.20	7.65	0.95	1.86	93.0
	23QG085	0.23	7.65	0.85	1.88	94.5
	23QG090	0.23	7.65	0.90	1.88	94.5
	23QG095	0.23	7.65	0.95	1.88	94.5
	23QG100	0.23	7.65	1.00	1.88	94.5
	27QG095	0.27	7.65	0.95	1.89	95.0
	27QG100	0.27	7.65	1.00	1.89	95.0
	27QG120	0.27	7.65	1.20	1.89	95.0
	30QG100	0.30	7.65	1.00	1.89	95.5
	300G105	0.30	7.65	1.05	1.89	95.5
	30QG120	0.30	7.65	1.20	1.89	95.5
Domamin Refined High Induction	18RK070	0.18	7.65	0.70	1.86	92.0
	18RK075	0.18	7.65	0.75	1.86	92.0
	18RK085	0.18	7.65	0.85	1.86	92.0
	20RK070	0.20	7.65	0.70	1.86	93.0
	20RK075	0.20	7.65	0.75	1.86	93.0
	20RK085	0.20	7.65	0.85	1.86	93.0
	23RK075	0.23	7.65	0.75	1.88	94.5
	23RK080	0.23	7.65	0.80	1.88	94.5
	23RK085	0.23	7.65	0.85	1.88	94.5
	23RK090	0.23	7.65	0.90	1.88	94.5
	23RK100	0.23	7.65	1.00	1.88	94.5
	27RK085	0.27	7.65	0.85	1.89	95.0
	27RK090	0.27	7.65	0.90	1.89	95.0
	27RK095	0.27	7.65	0.95	1.89	95.0
	27RK100	0.27	7.65	1.00	1.89	95.0
	27RK120	0.27	7.65	1.20	1.89	95.0
	30RK095	0.30	7.65	0.95	1.89	95.5
	30RK100	0.30	7.65	1.00	1.89	95.5
	30RK105	0.30	7.65	1.05	1.89	95.5
	30RK120	0.30	7.65	1.20	1.89	95.5

Typical Mechanical Properties

Type	Nominathicknessmm	Rm Tensile strength N/mm²		Elongation %	HV5 Hardness	Number of bends	Lamination factor %
Type	Nominathicknessmm	L	C	L	HV5 Hardness	Number of bends	Lamination factor %
Convertional	0.23	347	422	6	177	25	97.2
	0.27	352	427	8	180	25	97.5
	0.30	349	424	10	180	22	98.0
	0.35	364	435	9	180	22	98.5
High induction	0.18	375	445	8	177	25	96.5
	0.20	374	445	8	177	25	97.0
	0.23	347	422	6	177	25	97.2
	0.27	357	441	10	178	20	97.5
	0,30	347	431	8	179	15	98,0
Domamin refined high induction	0.18	368	417	13	177	22	96.5
	0.20	367	433	13	177	22	97.0
	0.23	342	417	6	177	20	97.2
	0.27	352	426	8	176	17	97.5
	0.30	336	408	9	177	19	98.0

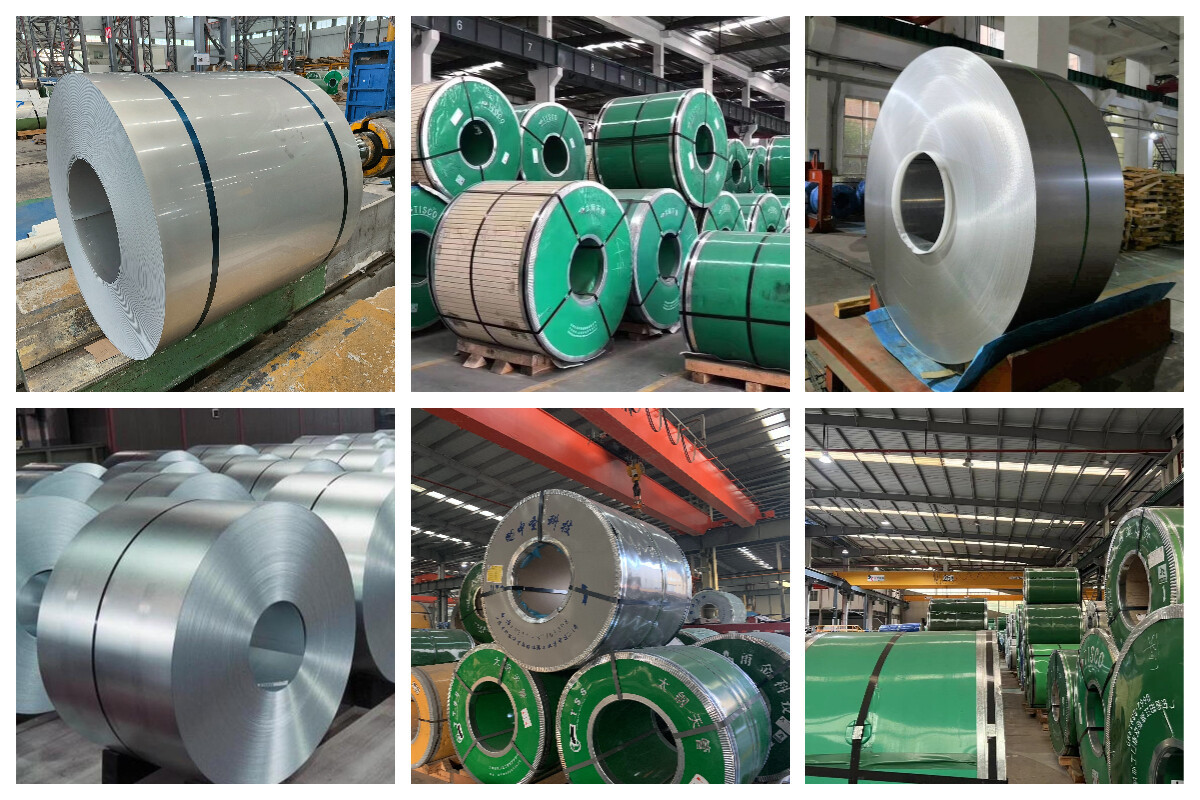

◉ Product Show

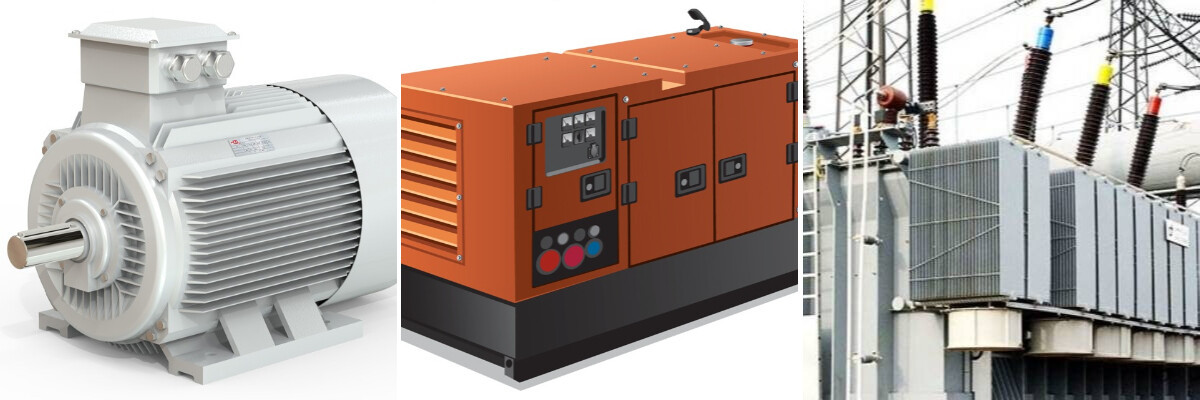

◉ Application

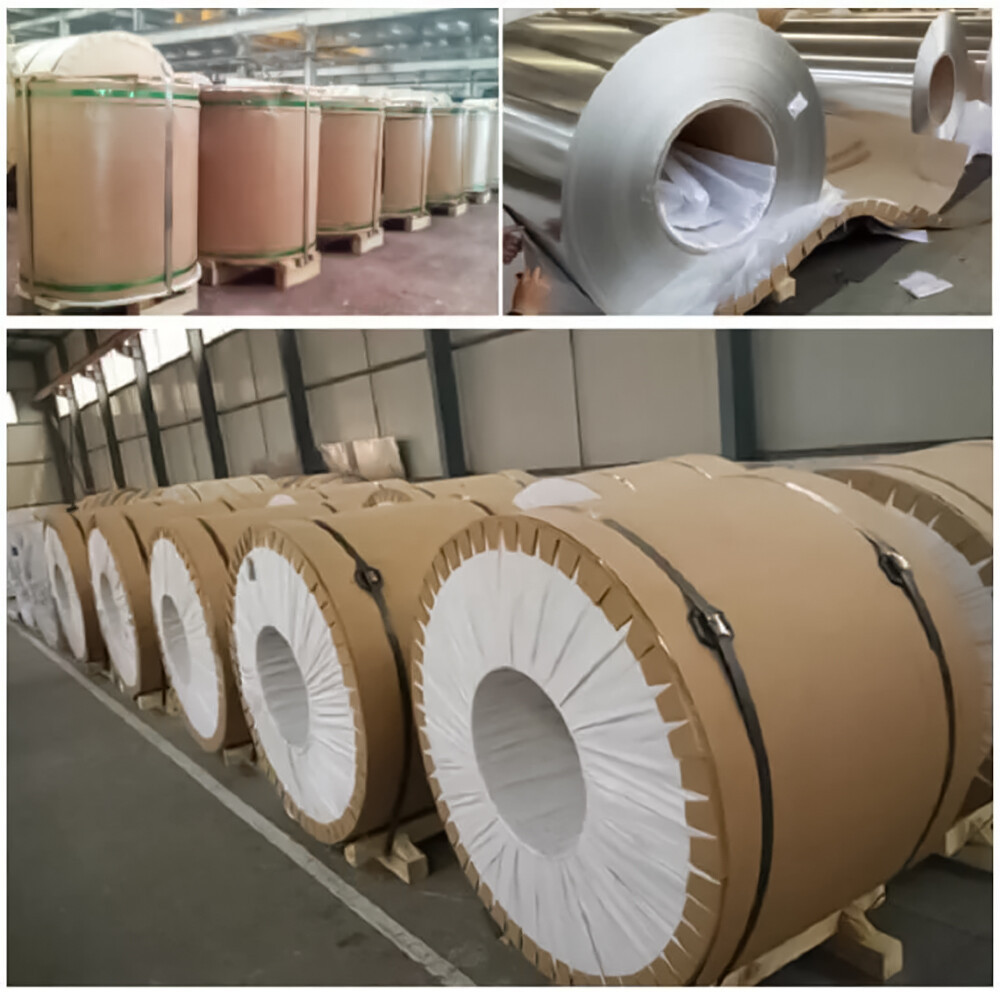

◉ Package
